Datasheet :

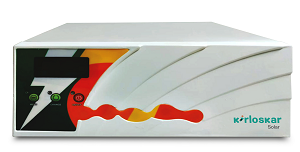

Off Grid Solar Inverter
The Kirloskar offers a comprehensive range of Off-Grid solar inverters, from 0.9 KVA to 15 KVA.
Key Features :
- User Friendly: Compact design, easy installation and transport -Sound control for easy operation -Smart cooling/Natural cooling design, ensure long life time
- High Yields: Max. efficiency up to 99% -High MPPT efficiency -Wide working voltage for longer production
- Integrated DC switch
- Multiple protection and detection / IP65 protection rating
- Transformer-less
- LCD Screen to monitor performance
- RS232/485 communication interface (Wi-Fi adapter Optional)
Product Details :
| Model Number | KSG-I-1K | KSG-I-2K | KSG-I-3K | KSG-III-5K | KSG-III-10K | KSG-III-20K | KSG-III-30K | KSG-III-40K | KSG-III-60K |
|---|---|---|---|---|---|---|---|---|---|
| Max. DC input power | 1300 W | 2300 W | 3400 W | 5200 W | 12000 W | 22000 W | 37500 W | 50000 W | 69000 W |
| Max. DC input voltage | 450 V | 450 V | 550 V | 800 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Max. DC input current | 10 A | 11 A | 13 A | 9 A | 13 A | 26 A | 34 A | 38 A | 105 A |
| No. of MPPT / I/N per MPPT | 1/1 | 1/1 | 1/1 | 2/1 | 2/2 | 2/3 | 2/4 | 2/4 | 1/11 |
| Max. AC output power | 1000 W | 2000 W | 3000 W | 5000 W | 10000 W | 20000 W | 30000 W | 40000 W | 60000 W |
| AC nominal voltage range | 220-240 V | 220-240 V | 220-240 V | 220-240 V | 220-240 V | 230V/ 400V | 230V/ 400V | 230V/ 400V | 230V/ 400V |
| Max. Efficiency | 97.4% | 97.4% | 97.4% | 97.4% | 97.8% | 98.0% | 98.9% | 98.0% | 99.0% |
| IP rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Product Range Datasheets :
| Module Range | Datasheet |
|---|---|
| KSG-I-1k to KSG-III-10K | Download* |
| KSG-III-20K to KSG-III-60K | Download* |
| Certificates : | |
|---|---|
| IEC 61683 | Download* |
| IEC 60068-2 (1,2,14,30) | Download* |
| IEC 62116 | Download* |
| IEC 61727 | Download* |
| IEC 60529 | Download* |
| IEC 62109 | Download* |
Key Features of Off Grid String Inverter :
High Efficiency
Micro Controller Based Design
Pure Sine Wave Output
Noiseless Operation
Light weight and Compact Design
