Datasheet :

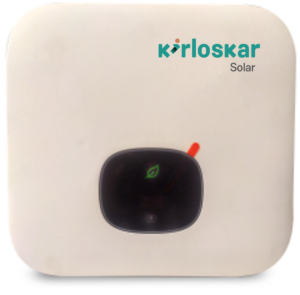

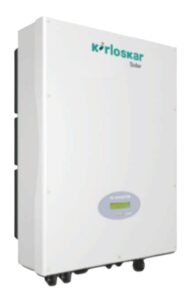

On Grid String Inverter
The Kirloskar offers a comprehensive range of solar inverters, from 1kW to 60kW. Inverters an ideal solar system solution for private homes, including small roof as well as ideal for commercial roofs and large distribution projects.
Key Features :
- User Friendly: Compact design, easy installation and transport -Sound control for easy operation -Smart cooling/Natural cooling design, ensure long life time
- High Yields: Max. efficiency up to 99% -High MPPT efficiency -Wide working voltage for longer production
- Integrated DC switch
- Multiple protection and detection / IP65 protection rating
- Transformer-less
- LCD Screen to monitor performance
- RS232/485 communication interface (Wi-Fi adapter Optional)
Product Details :
| Model Number | KSG-I-1K | KSG-I-2K | KSG-I-3K | KSG-III-5K | KSG-III-10K | KSG-III-20K | KSG-III-30K | KSG-III-40K | KSG-III-60K |
|---|---|---|---|---|---|---|---|---|---|
| Max. DC input power | 1300 W | 2300 W | 3400 W | 5200 W | 12000 W | 22000 W | 37500 W | 50000 W | 69000 W |
| Max. DC input voltage | 450 V | 450 V | 550 V | 800 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Max. DC input current | 10 A | 11 A | 13 A | 9 A | 13 A | 26 A | 34 A | 38 A | 105 A |
| No. of MPPT / I/N per MPPT | 1/1 | 1/1 | 1/1 | 2/1 | 2/2 | 2/3 | 2/4 | 2/4 | 1/11 |
| Max. AC output power | 1000 W | 2000 W | 3000 W | 5000 W | 10000 W | 20000 W | 30000 W | 40000 W | 60000 W |
| AC nominal voltage range | 220-240 V | 220-240 V | 220-240 V | 220-240 V | 220-240 V | 230V/ 400V | 230V/ 400V | 230V/ 400V | 230V/ 400V |
| Max. Efficiency | 97.4% | 97.4% | 97.4% | 97.4% | 97.8% | 98.0% | 98.9% | 98.0% | 99.0% |
| IP rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Product Range Datasheets :
| Module Range | Datasheet |
|---|---|
| KSG-I-1k to KSG-III-10K | Download* |
| KSG-III-20K to KSG-III-60K | Download* |
| Certificates : | |
|---|---|
| IEC 61683 | Download* |
| IEC 60068-2 (1,2,14,30) | Download* |
| IEC 62116 | Download* |
| IEC 61727 | Download* |
| IEC 60529 | Download* |
| IEC 62109 | Download* |
Key Features of On Grid String Inverter :
User Friendly: Compact design, easy installation and transport -Sound control for easy operation -Smart cooling design.
High Yields: Max. efficiency up to 99% -High MPPT efficiency -Wide working voltage for longer production
RS232/485 communication interface (Wi-Fi adapter Optional)
Multiple protection and detection / IP65 protection rating
Integrated DC switch
LCD Screen to monitor performance.
Transformer-less
